AMIMON PROSIGHT KIT INCLUDING TRANSMITTER,CAMERA & PROSIGHT RECEIVER

AMIMON PROSIGHT KIT INCLUDING TRANSMITTER,CAMERA & PROSIGHT RECEIVER

Quantity: 1

Introducing the CONNEX™ ProSight™ HD FPV Vision Kit for Drone Racing featuring digital, HD FPV.

Have you ever wished you could fly real-time FPV in High Definition with a mini FPV racer? Of course you have. GetFPV is happy to announce that this dream will soon be a reality. GetFPV will be among the first to have this new technology available to the public!

CONNEX™ is changing the game in FPV racing. Connex will take FPV drone racing to a new era. Despite its fast growing popularity, FPV drone racing has been dogged by some technical challenges limiting wider spread adoption.

Connex addresses those head-on with mind-blowing realism and accuracy in video transmission and vision. Think analog to digital TV. Dial-up to fiber optic. That's what we're talking about. The sport will never be the same.

Note: The Connex ProSight system is a non-returnable item once it has been opened.



Features

  • 720p30 HD Camera, with high-dynamic range sensor and 2.8mm lens
  • Receiver Unit outputs standard 720p60 over HDMI for reducing motion blur
  • Compatible with all popular HDMI based Goggles/Monitors
  • Digitally paired transmitter to receiver for crosstalk-free flight
  • Supported LOS range of 1000ft to 3000ft (300m to 1000m) varies with field conditions
  • Advanced frequency setup for multi-pilots: Automatic & Manual modes, supporting 27 digital channels (FCC)
  • System configuration via Bluetooth using Android/iOS app or through built-in on-screen display menu
  • Advanced High Definition spectator viewing mode
  • Camera to HDMI receiver-out maximum latency of 26mS

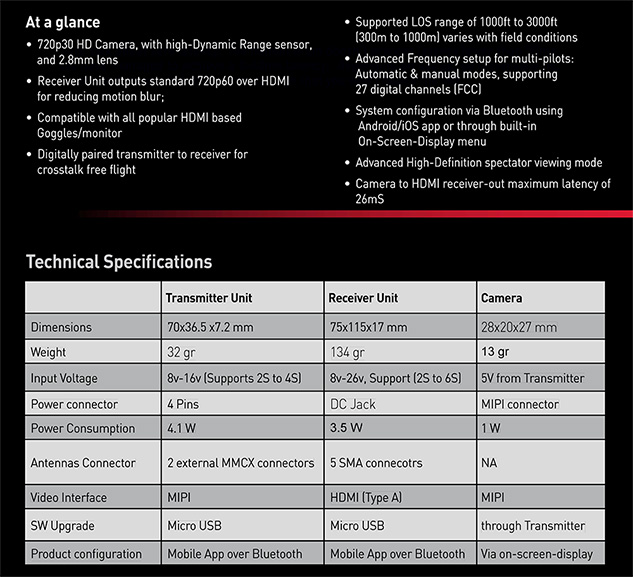

Specifications (Transmitter)

  • Dimensions: 70x36.5x7.2mm
  • Weight: 32gr
  • Input voltage: 8v – 16v (supports 2S to 4S)
  • Power Connector: 4 Pins
  • Power Consumption: 4.1W
  • Antenna Connector: 2 External MMCX Connectors
  • Video Interface: MIPI
  • SW Upgrade: Micro USB
  • Product  Configuration: Mobile App over Bluetooth

Specifications (Receiver)

  • Dimensions: 75x115x17mm
  • Weight: 134gr
  • Input voltage: 8v – 26v (supports 2S to 6S)
  • Power Connector: DC Jack
  • Power Consumption: 3.5W
  • Antenna Connector: 5 SMA Connectors
  • Video Interface: HDMI (Type A)
  • SW Upgrade: Micro USB
  • Product  Configuration: Mobile App over Bluetooth

Specifications (Camera)

  • Dimensions: 28x20x27mm
  • Weight: 13gr
  • Input voltage: 5v  from Transmitter
  • Power Connector: MIPI
  • Power Consumption: 1W
  • Antenna Connector: N/A
  • Video Interface: MIPI
  • SW Upgrade: Through Transmitter
  • Product  Configuration: Via On-Screen Display

Included

  • Connex Pro Sight Video Receiver
  • Connex Pro Sight Video Transmitter
  • Connex Pro Sight Camera
  • All necessary cabling
